High Pressure Homogenizer DW-1A
- The highest pressure of JG-IA is 256Mpa (37120PSi), which can satisfy many cell wall breaking and nano homogenization/dispersion of samples, and realize effective temperature control at the same time.
- Continuously adjustable pressure,0-37,120 psi
- Simple operation, continuous circulation of the sample, no exhaust, directly feed
- Physical methods crushing to avoid external pollution
- Convenient maintenance
- The safety factor is high, and the circuit has an overload automatic protection function
- Many kinds of cell walls and samples are satisfied, and no specific samples
Features of High Pressure Homogenizer DW-1A
Coli and yeast broken, animal and plant cells broken, the crushing rate of more than 95% one time;
Yeast / Ganoderma lucidum spore and other fungi broken; cyanobacteria / green algae and other algae broken;
It can be homogeneous emulsions, liposomes, microemulsions, and solid and liquid suspensions up to 100nm, with uniform particle size distribution.
Specifications of the Product
|
Model |
DW-IA |
|
Power Supply |
380V |
|
Pressure device |
Hydraulic System |
|
Sample tube |
Stainless steel |
|
Pressure tank size |
Φ25*150mm |
|
Capacity |
Max 50ml/time, Continuous increase samples |
|
Max pressure |
256Mpa(37120PSi) |
|
Max pressure stroke |
170mm |
|
Pressure plate speed |
6.8mm/s |
|
Dimensions |
555*600*1170mm |

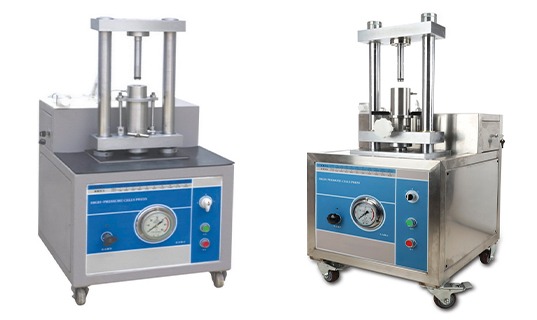

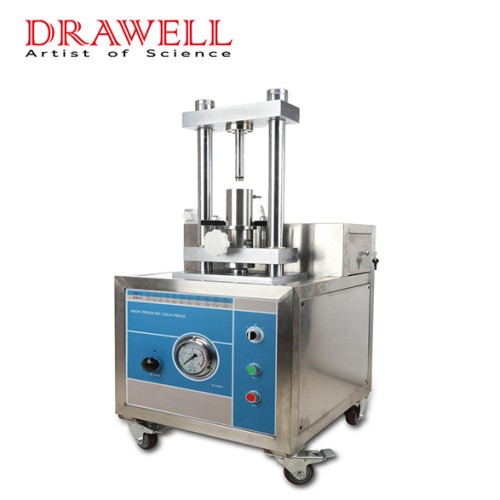

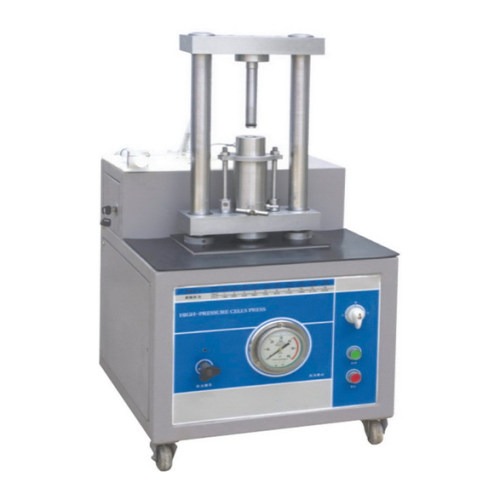

Product Display
